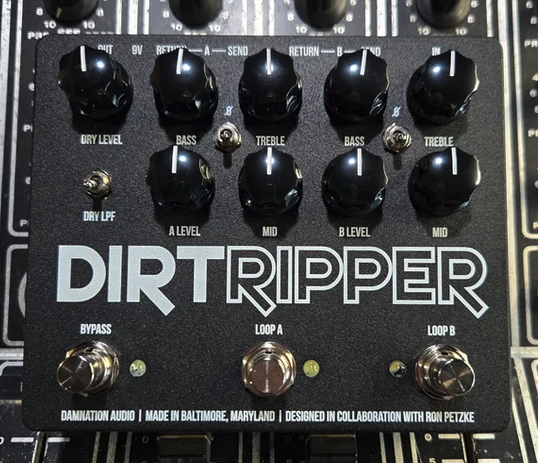

Damnation Audio Dirtripper -2 CHANNEL BASS BLENDER AND EQ

This is a tale of two loops. Each one in parallel with your clean signal. Turn them on or off at will. That's it. It's the Mother Brain for your paralleled signal chain.

Designed in conjunction with Ron Petzke of Bongripper and Seaxes.

I/O:

IN - Bass guitar input
A SEND - To input of pedal in the loop A*
A RETURN - To the output of the pedal in loop A*
B SEND - To input of pedal in the loop B*
B RETURN - To the output of the pedal in loop B*
OUT - To input of amp
9V - 9V (only) center negative DC input
* When nothing is in the loop the send and return are connected. This means you can run each channel as a standalone EQ. Think of the possibilities.

CONTROLS:

BYPASS - Engages pedal
LOOP A - Engages Effects Loop A (BYPASS MUST BE ENGAGED)
LOOP B - Engages Effects Loop B (BYPASS MUST BE ENGAGED)
DRY LPF - Adjusts the frequency response of your clean signal. Up is low passed at 200Hz. Down is full range.
DRY LEVEL - Volume of clean signal
BASS - 100Hz boost/cut on effects loop signal
MID - 800Hz boost/cut on effects loop signal
TREBLE - 2.2kHz boost/cut on effects loop signal
LEVEL - Adjusts output level of effects loop signal
POLARITY - Adjusts the polarity of the effects loop signal from 0 to 180 degrees.

More details are available in the Dirt Ripper Manual.
